WSERD30T
Small and quiet, Alpha’s new WSERD30T motor delivers optimal performance.
Product Description
- Push button programming
- Compact design
- Quiet

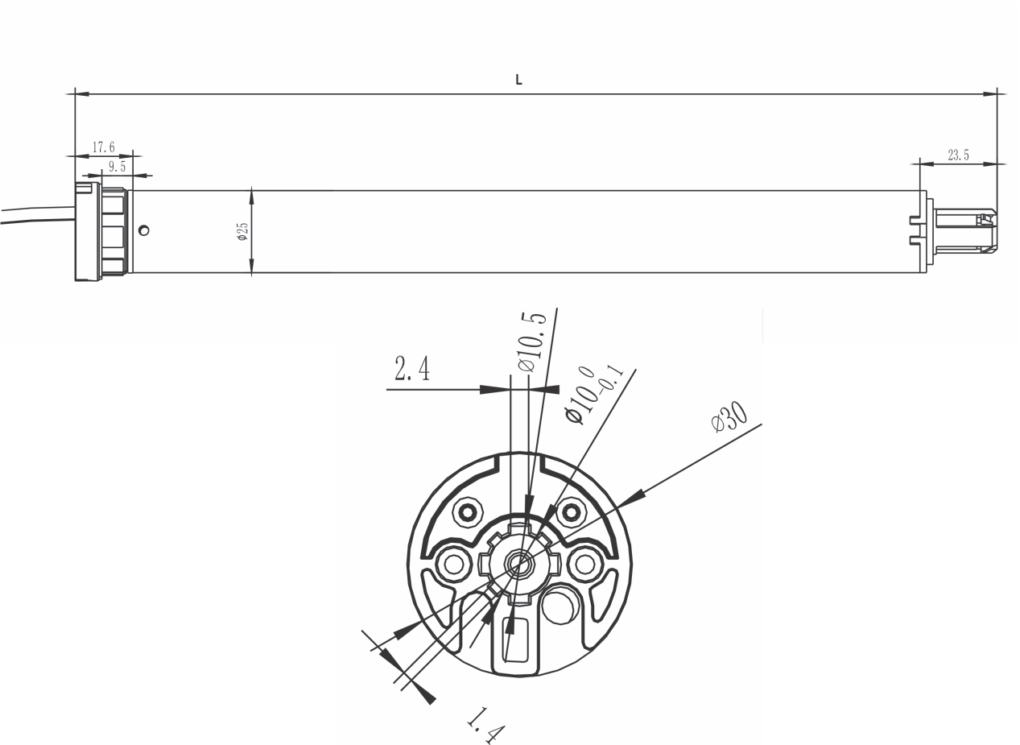

- 25mm diameter
- AC 120-240V power supply
- Built-in transformer
- Electronic limit switch
- Built-in receiver
- Tilting to adjust light
- 3rd intermediate limit position
| AC | Type 2/31 |
|---|---|
| Rated Torque (N.m) | 2 |
| Output Speed (rpm) | 31 |
| Nominal Consumption (W) | 13.6 |
| Nominal Voltage (V) | 100-240 |
| Nominal Current (A) | 0.24 |
| Running Time (min) | 4mins |
| Protection Index (IP) | 20 |
| Total Length (in) | 17.7 |
| Maximum Turns | infinity |
| Net Weight (lb) | 1.1 |
| Relay or Switch Control | Yes |
SAFETY GUIDELINES FOR ALPHA TUBULAR MOTORS
At Alpha Tubular Motors, your safety and the effective operation of our tubular motors with lithium-ion batteries are our top priorities. We kindly ask you to follow these important safety guidelines:
Avoid Overcharging
Please disconnect the motor from the charger as soon as the green light indicates a full charge. Overcharging can lead to overheating and may pose a fire risk.
Prevent Overheating
To help prevent overheating, ensure the motor is not exposed to high temperatures or direct sunlight for extended periods.
Immediate Action
If you notice any unusual warmth, discoloration, or odors coming from the motor, please disconnect it from the power source and stop using it right away.
Proper Storage
Store the motor in a cool, dry place, away from flammable materials. For best results, keep it within a temperature range of -4°F to 149°F.
Use Approved Chargers
Always use the charger that comes with the motor or an approved replacement. Using incompatible chargers can create safety hazards.
Disposal
Please dispose of lithium-ion batteries according to local regulations. Avoid incinerating or submerging them in water, as this can lead to dangerous reactions.
Additional Notes
To keep your motor in top shape, charge it every six months.
For safety, please ensure that children do not play with the remote or motor.
Liability Disclaimer
While we at Alpha Tubular Motors strive to provide safe and reliable products, we cannot accept liability for any damage or personal injury resulting from improper use, charging, storage, or handling of our motors or their lithium-ion batteries. By using our products, you acknowledge that you have read, understood, and agree to follow these safety guidelines.
