WSERD30B 1/30
Ultra quiet short 18 inch motor with coreless technology.
Intuitive automation with Alpha remotes, app and Matter technology.
Product Description
The WSERD30-B 1/30 C (1Nm) motor can lift a blind up to 6.5ft high x 6.5ft wide. With long battery life, this 1Nm motor has a USB-C charging port and uses an ALDC 5V-C charger.
- DC 5V power supply
- Built-in rechargeable Lithium battery
- Electronic limit switch
- Built-in receiver
- 3rd intermediate limit position
- Short motor at just 18 inches long
- Ultra quiet operation
- Adjustable speed
- Patented coreless technology
- No aerials
- NEO app control
ALDC charger required
- Charger comes with 13ft cable.
- 10ft extension cable also available.
- A 7.9 inch charging tail is available for optional use, in case the motor head is difficult to access after installation.

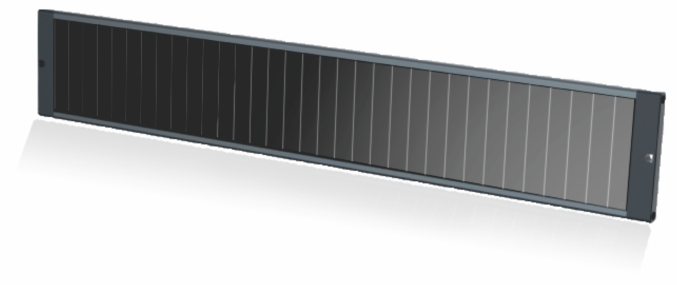

Solar Panel TYB004
Sturdy and stylish with an ultra narrow design.
| 12 Volt DC | Type 1/30 |
|---|---|
| Rated Torque (N.m) | 1 |
| Output Speed (rpm) | 30 |
| Nominal Consumption (W) | 16.3 |
| Nominal Voltage (V) | 7.4 |
| Nominal Current (A) | 1.5 |
| Running Time (min) | infinity |
| Protection Index (IP) | 20 |
| Total Length (in) | 18.1 |
| Maximum Turns | infinity |
| Net Weight (lb) | 1.05 |
| Max Lifting Capacity (ft) | 6.5x6.5 |
PLEASE NOTE:
• To keep product in good condition, please charge the motor every 3 months.
• Please do not let children play with the remote or motor.
• Storage temperature: -4°F to 149°F
Warranty: 3 years
SAFETY GUIDELINES FOR ALPHA TUBULAR MOTORS
At Alpha Tubular Motors, your safety and the effective operation of our tubular motors with lithium-ion batteries are our top priorities. We kindly ask you to follow these important safety guidelines:
Avoid Overcharging
Please disconnect the motor from the charger as soon as the green light indicates a full charge. Overcharging can lead to overheating and may pose a fire risk.
Prevent Overheating
To help prevent overheating, ensure the motor is not exposed to high temperatures or direct sunlight for extended periods.
Immediate Action
If you notice any unusual warmth, discoloration, or odors coming from the motor, please disconnect it from the power source and stop using it right away.
Proper Storage
Store the motor in a cool, dry place, away from flammable materials. For best results, keep it within a temperature range of -4°F to 149°F.
Use Approved Chargers
Always use the charger that comes with the motor or an approved replacement. Using incompatible chargers can create safety hazards.
Disposal
Please dispose of lithium-ion batteries according to local regulations. Avoid incinerating or submerging them in water, as this can lead to dangerous reactions.
Additional Notes
To keep your motor in top shape, charge it every six months.
For safety, please ensure that children do not play with the remote or motor.
Liability Disclaimer
While we at Alpha Tubular Motors strive to provide safe and reliable products, we cannot accept liability for any damage or personal injury resulting from improper use, charging, storage, or handling of our motors or their lithium-ion batteries. By using our products, you acknowledge that you have read, understood, and agree to follow these safety guidelines.
