WSCMQ-A 1.2Nm
AC drapery motor
3 years warranty
Product Description
Remote control motor compatible with all Alpha controllers and our Neo App.
Dry contact control available for use with switches or relays.
Can be drawn by hand if power is disconnected.
Auto limits setting, with a pulling capacity of 110lbs.
Comes with normal tail and Molex connector.

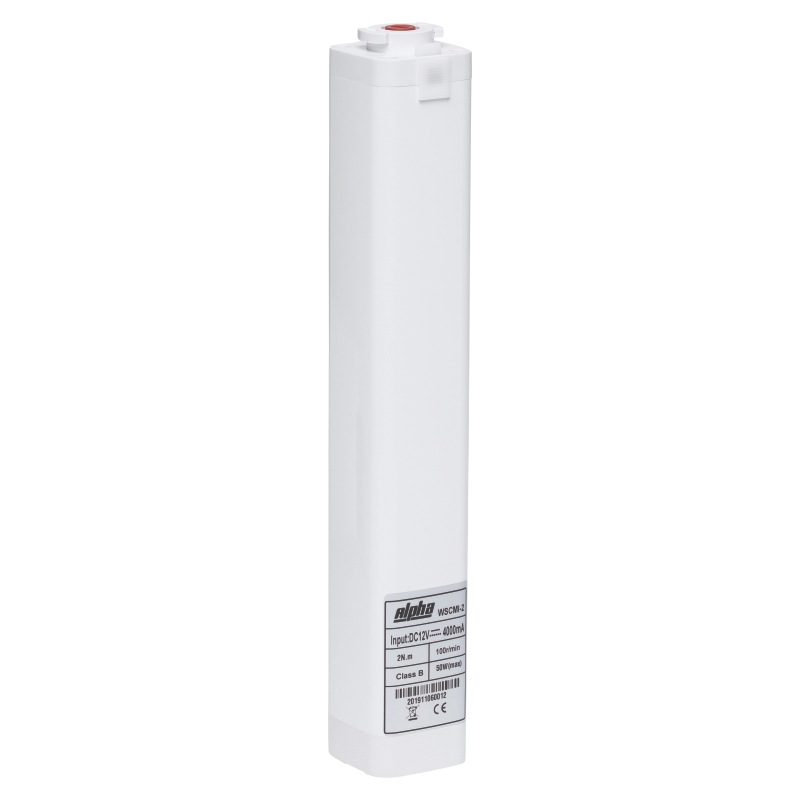

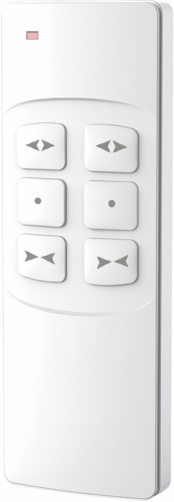

Requires DCB007 battery pack, a 16.8 charger for the battery pack, and a RE306B remote.
WSCMQ Specs
| AC | |
|---|---|
| Rated Torque (N.m) | 1.2 |
| Maximum Pulling Weight (lbs) | 44 |
| Running Speed (/sec) | 7 |
| Nominal Voltage (V) | 100-240 |
| Nominal Current (A) | 0.47 |
| Running Time (Mins) | infinity |
| Protection Index (IP) | 20 |

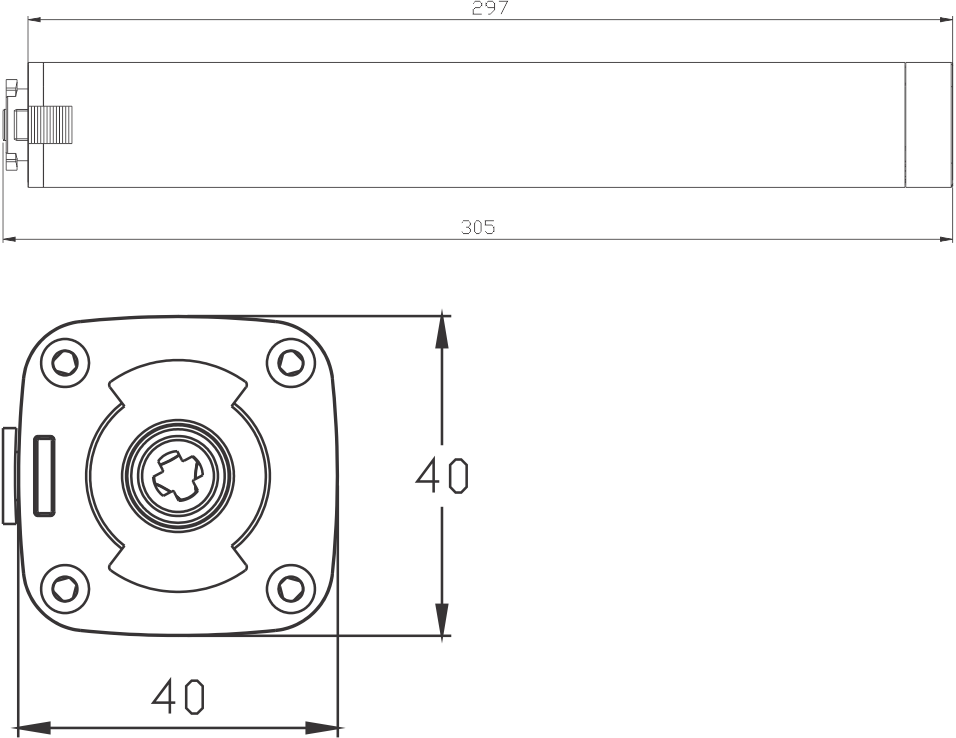

| Total Length (in) | 11.8 |
| Maximum Turns | infinity |
| Net Weight (lb) | 2 |
| RS-485 Compatible | Yes |
| Relay or Switch Control | Yes |
